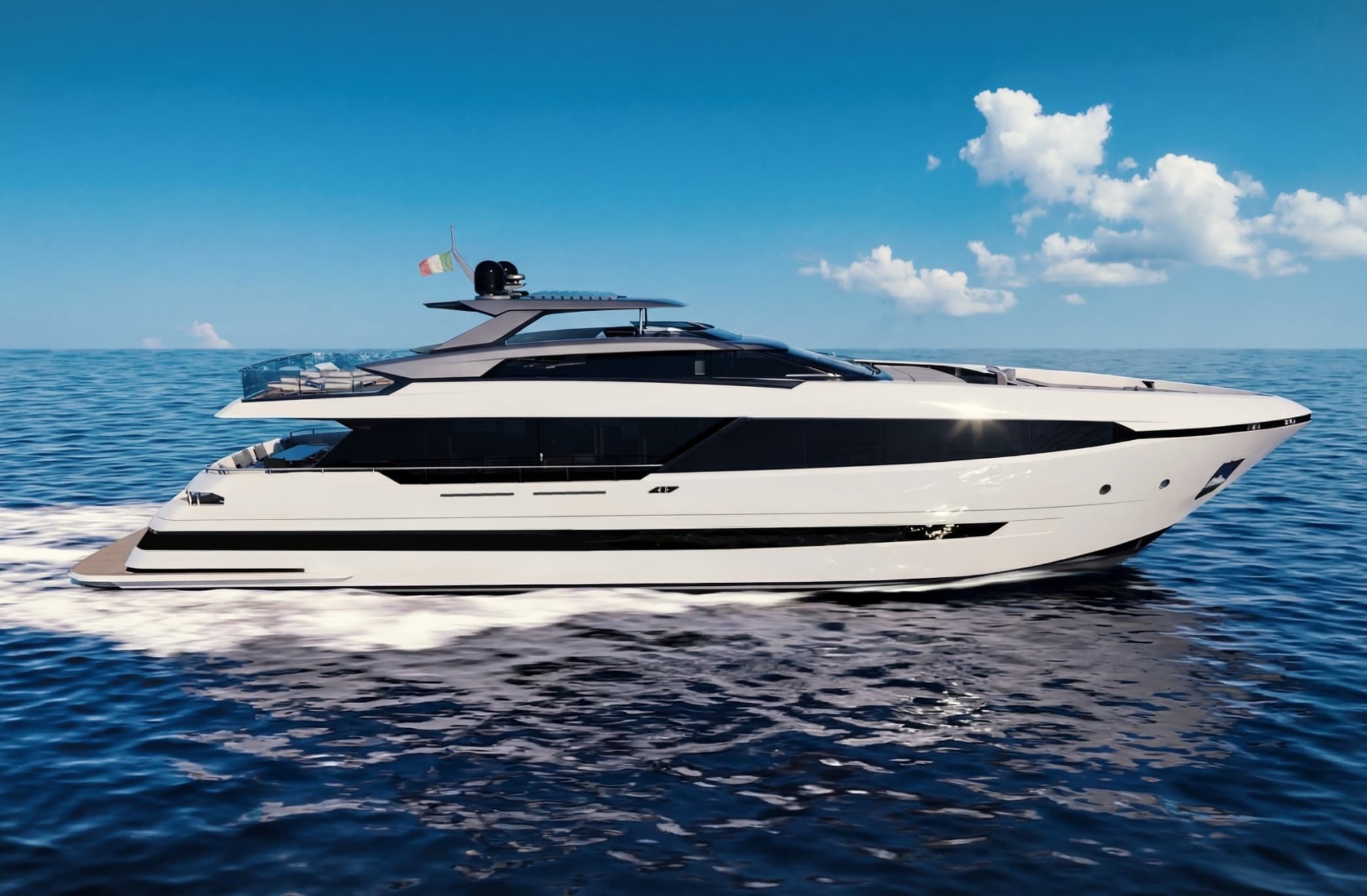

The brand-new 34m CANTIERI DI PISA CUSTOM 112 full-aluminium planing Superyacht for sale is a luxury, seagoing, twin screw propeller flybridge motor yacht with excellent sea-keeping qualities, which is now well under construction in Pisa, Italy.
With naval architecture by Cantieri di Pisa, exterior lines penned by Acube Design and interior design by Antonio Luxardo (Optima), this flybridge yacht is constructed with impressive performance, volume of 130 GT and quality standards, with raised pilothouse.
Her exterior boasts huge flybridge space, “Portuguese” foredeck, lateral launching tender garage, and a unique opening stern beach club with skylight, sauna, shower and day head.
Other features include RINA commercial class, underway and at anchor fin stabilizers and state-of-the-art electronics and entertainment systems.
The CANTIERI DI PISA CUSTOM 112 comfortably accommodates in luxurious Italian contemporary style, 10 guests in 5 en-suite staterooms comprising an main deck and full-beam Master suite, as well as 2 double VIP cabins and 2 twin cabins on the lower deck. The yacht also carries 5 crew members for excellent service onboard.
The CANTIERI DI PISA CUSTOM 112 motor yacht is powered by twin 2000 Hp MAN 12V diesel engines providing a maximum speed of 27 knots, a cruise speed of 23 knots and a maximum range of 1450 nautical miles at her economical cruising speed of 10 knots.
With a reasonable medium-term completion and delivery schedule of only 12 months, early viewings at the yard are strongly encouraged.
KEY FEATURES
- Italian-built Planing Superyacht with only 12-Month building schedule
- Impressive performance, volume and quality standards
- Full-aluminium construction
- Full options with state-of-the-art entertainment equipment
- 5 En-suite Staterooms for up to 10 Guests
- Full-beam Master stateroom forward on main deck
- Crew accommodation for 5 ensuring maximum service
- Zero speed and underway fin stabilizer system
- Long-range cruising of 1450 nautical miles at 10 knots
- Lateral launching tender system for tender up to 4.5m
- Huge flybridge space
- Opening stern beach club with sauna, shower and day head
- RINA Commercial Class
MAIN CHARACTERISTICS
- Builder: Cantieri di Pisa SRL (Italy)
- Model: Cantieri di Pisa Custom 112
- Naval Architect: Cantieri di Pisa
- Exterior Designer: Acube Design
- Interior Designer: Cantieri di Pisa / Acube Design / Antonio Luxardo (Optima)
- Type: Motor Yacht / Superyacht / Flybridge Yacht / Raised Pilothouse
- Hull Type: Planing
- Hull Material: Aluminium Alloy
- Superstructure Material: Aluminium Alloy
- Decks: Teak-laid
- Year: 2027 (New)
- Overall Length: 33.90 m (111’ 3”)
- Waterline Length: 28.50 m (93’ 6”)
- Beam: 7.45 m (24’ 5”)
- Draft: 2.00 m (6’ 7”)
- Headroom: 2.10 m (6’ 11”)
- Displacement (light load): 103,000 kg (227,076 lb) approx.
- Displacement (full load): 121,000 kg (266,759 lb) approx.
- Gross Tonnage: 130 GT
- Class: RINA Commercial Yachts
- Location: Pisa, Tuscany, Italy
PROPULSION
- Type / Fuel: Twin Diesel
- Main Engines: 2 x 2000 Hp MAN V12-2000 @ 2300 RPM
- Maximum Speed: 27 knots
- Range @ 27 Knots: 580 NM
- Cruise Speed: 23 knots
- Range @ 23 Knots: 760 NM
- Economical Speed: 10 knots
- Range @ 10 Knots: 1450 NM
- Transmissions: 2 x Shaft line drives in AQUAMET 17
- Propellers: 2 x DETRA counter-rotating, skewed, 5-blade props.
- Rudders: 2 x Rudders in AISI 316 L with an approx. surface of 1.5 m2
TANKAGE
- Fuel Capacity: 16,000 l (4,227 US Gallons)
- Fresh Water Capacity: 2,650 l (700 US Gallons)
- Black Water Tank: 900 l (238 US Gallons)
- Grey Water Tank: 900 l (238 US Gallons)
- Clean Lube Oil: 200 l (53 US Gallons)
- Sludge Oil: 200 l (53 US Gallons)
ACCOMMODATION
- 10 Guests in 5 en-suite staterooms
- Guest Cabin Configuration:
- Full-beam Owner’s suite forward on main deck with office and walk-in dressing, vanity, lounge area with sofa, and en-suite bathroom with separate shower and bathtub compartments
- 2 x Double VIP cabins on lower deck each with closets, desks and en-suite bathroom
- 2 x Twin cabins on lower deck each with closets, desks and en-suite bathroom
- Crew Accommodation:
- 5 Crew in 3 cabins
- Captain’s cabin
- 2 x Crew cabins
- All on lower deck forward and each with en-suite facilities
- Open air flybridge with sunbeds, wetbar, dining area, lounging area, and exterior pilot station
- State-of-the-art wheelhouse on raised pilothouse
- Stern beach club with overlooking skylight, day head and optional sauna with shower
- Aft cockpit with skylight, 2 x chaise longues, sofa with adjustable backrests and side tables
- Forward deck with ample lounging area and 2 tables
- Main deck with main saloon and formal dining with day head and direct access to fully equipped galley
- Crew mess with dinette & laundry area forward on lower deck
MAIN EQUIPMENT
- 2 x CMC 1.6 m2 zero speed and underway electric fin stabilizers
- CMC counter-rotating electric bow thruster 36 kW
- Hydraulic power pack
- Air conditioning throughout
- RACOR filters for engines and generators
- ALFA LAVAL MIB 303 oil separator
- Compressed air system with 120 l mini compressor
- Machine standard cooling system suitable for Mediterranean waters
- Domestic water system
- Fresh water purifier
- Black and grey water system
- Motorpump: MPFS 40/14, 6.2 kW
- Firefighting Plant: 2 x Sea water pumps GIANNESCHI ACM 501 BT, 400V, 3-phase (the 2 pumps are interconnected and can be used alternatively for firefighting and bilge suction)
- Bilge Plant: 2 x Pumps GIANNESCHI ACM 501/C, 400V, 3-phase
- Fixed Firefighting Plant: Fixed gas NOVEC firefighting system fitted for the engine room
- Fuel Transfer Pump: GIANNESCHI ACB 431/B, 400 V, 3-phase, 2.2 kW
- Tender Fuelling Pump: GIANNESCHI PE 56 0.50 kW
- Oil Change Plant: 2 x Pumps GIANNESCHI FQ 40, 400V, 3-phase (one for dirty oil and one for clean oil)
- Engine Room and Garage Ventilation:
- 2 x Ventilators GIANNESCHI ELL/AP 565/1, 400V, 3-phase, 2.2 kW
- 2 x Extractors GIANNESCHI VCR 501/D, 400V, 3-phase, 2.2 kW
- Sludge Evacuation System: HAMMAN treatment system which separates it and sludge tank included according to MARPOL and RINA Class recommendations
- Wastewater Treatment Plant: HAMANN HL CONT PLUS COMPACT 0125
- Vacuum Station (for toilets): JETS EDGE S DUO
- Engine Exhaust System: Wet exhausts with through-hull outlet, according to engine manufacturer’s standards
- Reverse osmosis fresh water maker (capacity of approximately 3,000 l per 24 hours)
ELECTRICAL EQUIPMENT
- Electrical Circuits: 400V AC, 230V AC / 24V DC
- 90 KVA transformer, inlet 400V, 3-phase, outlet 400/230V, 3-phase + neutral
- Service battery bank
- Engine start battery bank
- Generators start battery bank
- Emergency battery bank
- MASTERVOLT battery chargers
- MASTERVOLT inverters
- Generators: 2 x 50 kW KOHLER 50EFOZDJ, 3-phase @ 1500 RPM
ENTERTAINMENT EQUIPMENT
- LCD TV with Skybox and Blu-ray driver in each cabin
- LCD TV with Skybox and Blu-ray driver in main saloon with up/down mechanism
- Main deck rack with 32 GB hard drive to have a huge storage of movies and music
- Amplifier located also in the rack
- Speakers and subwoofers installed in suitable positions to provide best Dolby surround audio
DECK EQUIPMENT
- 2 x Vertical anchor windlasses 3500 W, reversible, in polished stainless steel
- 2 x Galvanized POSIDONIA High Holding Power (HHP) stainless steel anchors
- 2 x Galvanized 150 m stainless steel chains complete with end links, shackles, anchor swivels and quick release
- Chain washing system
- Motorized drum for shore power cable
- 2 x Stern mooring capstans 2500 W, reversible, polished stainless steel
- Hydraulic stern platform / Opening beach club
- Rear garage door to port
- Floodable lateral tender launching and recovery system
- Electro-hydraulic operating garage watertight door, upward opening
- SEABOBs storage (to starboard)
- Hydraulic telescopic stern gangway (approximately 50/55cm wide x 5m long)
- Automatic sliding door on main deck
- 800 kg gantry crane fitted on the garage ceiling
- 200 l Diesel gravity tank for tender fuelling with hose reel and flow-meter
- ‘Pirate Searchlight’ projector
- Removable stainless-steel shower on the aft platform
- Sun awnings with carbon poles on the aft deck, flybridge and foredeck
- 6 x CANTALUPI underwater lighting in white (2 on stern platform, 2 to port, 2 to starboard)
- Stainless-steel vessel name, backlit in white, on sides (up to 8 characters per side)
- Stainless-steel boat name, backlit in white, on the stern on the beach club door
- Loose outdoor furniture excluded (MINOTTI optional)
- BURMA teak decks 12 mm throughout
- Hot/cold fresh water connections (all decks)
- Compressed air intakes (stern deck, garage and bow deck)
- Flybridge wetbar
- Access to foredeck via opening hatch from raised pilothouse
- Foredeck ‘Portuguese bridge’ with settees and tables
- Main deck Mini-fridge
- Loose furniture to be selected by ROYAL BOTANIA or RODA catalogues
- Hard top system to cover the deck external dining area
- Set of SUNBRELLA covers for all exterior sofa and sun cushions supplied as standard equipment
- Awning to protect the instrument panel of the outside side control wings and the filtering awning, transparent type, for frontal windows of the wheelhouse
- Covers for all the capstans
- Supply of mooring ropes, fenders and lifelines in accordance with RINA Class and Flag requirements
SAFETY & SECURITY EQUIPMENT
- Supplied in accordance with RINA Class and Flag requirements
TENDERS & WATERSPORTS
- Tender to be stored in the floodable garage with lateral launching system
- Maximum size of the tender 4.50 m (14’ 9”) – Owner’s supply
- 2 x Jet-skis, SEABOBs and other PWC, kayaks, snorkelling gear, etc. – Owner’s supply
ADDITIONAL OPTIONS
- Please consult with us.
- 3 x Finishing proposals to select.
